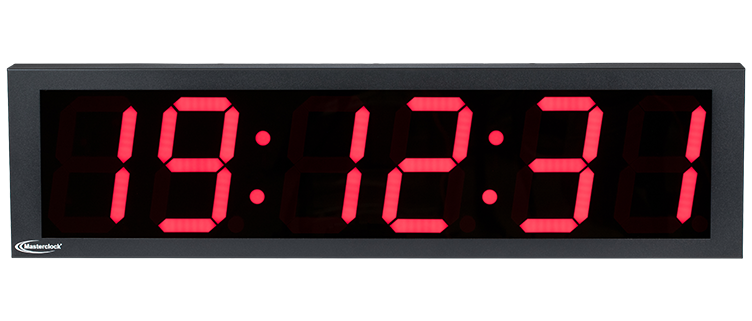

NTDS86
7 in (17.8 cm) 6-Digit LED Display Panel (red, green, blue, white or amber)
- 6-digit LED display available in red, green, blue, white or amber
- Adjustable brightness levels with auto-dimming option
- Visibility: 350 feet (100 meters)
- Display time in 12- or 24-hr format: hh:mm
- Dual-faced mountable option available
- WinDiscovery software included
- Custom case color and logo available with minimum quantity order
NTDS86 Digital Clock
The NTDS86 digital clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and daylight savings time parameters and can be powered via PoE. WinDiscovery software is included.
Reference Documents
SpecificationsNTDS86 Digital Clock
Connectors
- Ethernet RJ45
- IEC AC Power
- DC input
- USB for configuration
Power
- Choice of: IEC AC, POE (Power over Ethernet IEEE802.3af) or DC (24 VDC)
- International IEC AC 90-240v, 50/60 Hz
- Power consumption <15W
Operating Parameters
- Temperature: 0 to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black powder-coated steel chassis
- Size: 37.3w x 9.75h x 2.63d in (94.7w x 24.8h x 6.68d cm)
- Weight: 12.0 lbs (5.4 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
