NTDS8646
7 in (18 cm) 6-Digit LED Top Display Panel with 4 in (10.2 cm) 6-Digit Bottom Display Panel (red, green, blue, or amber)
- 6-digit LED top display with 6-digit bottom display available in red, green, blue or amber
- Display time in 12- or 24-hr format: hh:mm:ss
- Display date in dd:mm:yy, mm:dd:yy, or yy:mm:dd
- Adjustable brightness levels with scheduled dimming option
- Stainless steel chassis
- Custom case color and logo available with minimum quantity order
- WinDiscovery software available for download

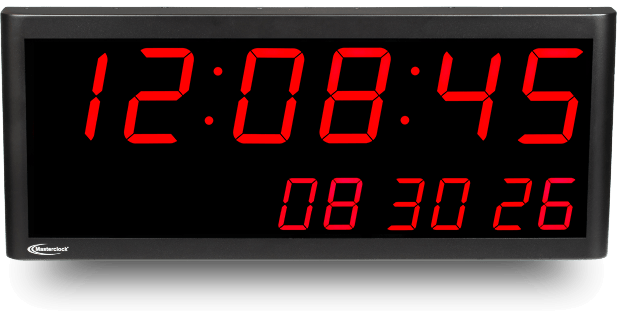

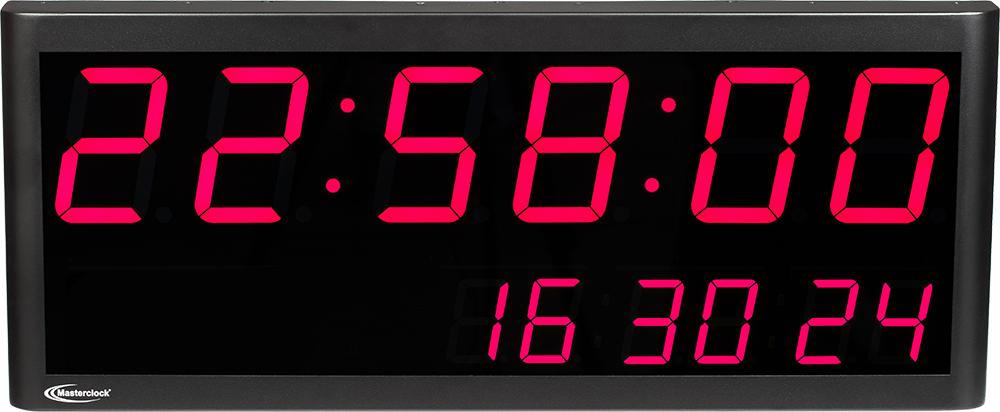

NTDS8646 Digital Clock
The NTDS8646 digital clock syncs to any NTP (Network Time Protocol) source for accurate traceable time. The unit configures to time zone and daylight savings time parameters. WinDiscovery software is available for download.
Reference Documents
SpecificationsNTDS8646 Digital Clock
Connectors
- Ethernet RJ45
- IEC AC Power
- USB for configuration
Power
- International IEC AC 90-240v, 50/60 Hz
- Power consumption <15W
Operating Parameters
- Temperature: 0° to 60°C
- Humidity: Up to 90% (non-condensing)
Physical
- Black metal chassis or Stainless Steel (Optional)
- Size: 39.4w x 15h x 2.63d in (100w x 38h x 6.7d cm),
Weight: 24 lbs (11 kg)
Compliance
- FCC, ROHS, CE Marked, ANSI
MTBF
- 86,700 - 100,000 hrs
- Calculated using Fixed/Ground Mil HDBK 217 assumption
